Digital (10-100ltrs Per Min)

From

£359.75

ex. VAT

Fluids

  • D
  • W
  • C
  • HVO/GTL
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
  • B2

About the product

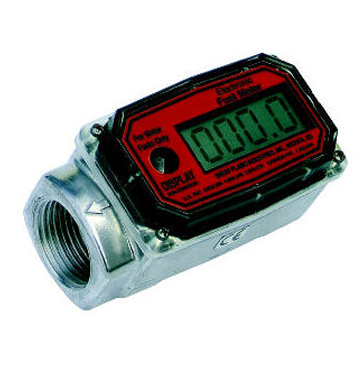

The GPI Turbine Digital Fuel Flow Meter is a small and reliable fuel counter meter, with an easy to read electronic display for indicating to the user how much of the fluid has been dispensed. Being so compact, the GPI meter is designed to be installed either inline within the pipework or at by the nozzle for the user’s easiest convenience. These diesel fuel flow meters benefit from a rugged housing and sealed electronic board making it a durable option for use in many conditions.

There are a number of versions of this fuel flow meter including diesel flow meters as well as options for chemicals, alcohol and water.

Please note: If being used with HVO, the meter should be re-calibrated based on it's SG of 0.78 (diesel is 0.84).

Features of the GPI Turbine Fuel Flow Meter:

  • Digital fuel flow meter
  • Flow rate: 10-100
  • Accuracy (dependent on model - see table)
  • Nylon turbine system
  • Working temperature -10°c/+50°c
  • Single channel reed switch
  • LCD electronic display (2 x AAA batteries)
  • 4 digit totaliser
  • Versions for diesel, chemicals, alcohol and water

Product Models and Features

CodeModelDescriptionPrice
OE00561" GPI Fuel Flow Meter for Diesel

Flow Rate (lpm) - 10-100

Max Pressure (bar) - 20.7

Ports - 1" F BSP

0.1-999.9 4 Digit Totaliser

Operating Temp -10°C/+50°C

Accuracy +/-5%

Diesel, B100

£359.75 ex. VAT

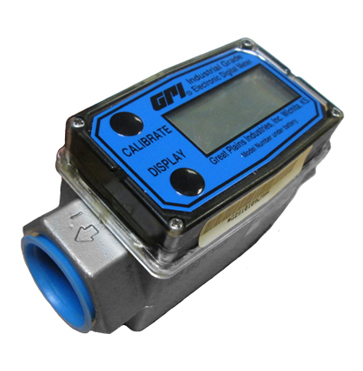

OE00551" GPI Stainless Steel Flow Meter for Chemicals & Alcohol

Flow Rate (lpm) - 19-190

Max Pressure (bar) - 20.7

Ports - 1" F BSP

0.1-999.9 4 Digit Totaliser

Accuracy +/-1%

Operating Temp -10°C/+50°C

Chemicals & Alcohol

IP Rating: IP65

£1,942.70 ex. VAT
OE00581" GPI Flow Meter for Water

Flow Rate (lpm) - 10-100

Max Pressure (bar) - 20.7

Ports - 1" F BSP

0.1-999.9 4 Digit Totaliser

Accuracy +/-5%

Operating Temp -10°C/+50°C

Water

£398.25 ex. VAT

Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.
