Piusi Open Automatic Oil Hose Reel

1/2" or 3/8" (Max 20m)

From

£341.70

ex. VAT

Fluids

  • O
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
  • B2
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

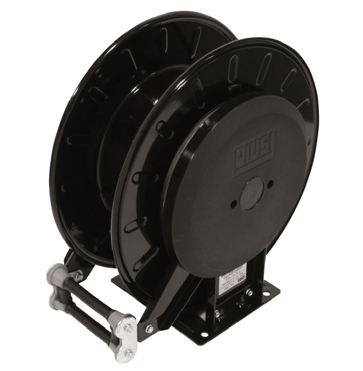

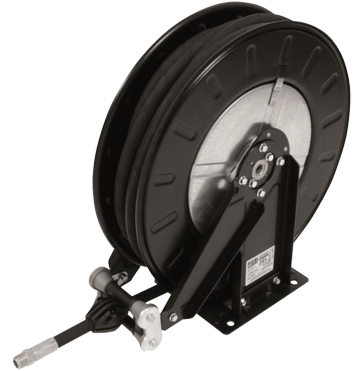

The Piusi Open Automatic Oil Hose Reel is designed for high pressure oil dispensing systems in garage and workshop environments. Thanks to its sturdy steel structure and four way roller mechanism to stop friction wear to the hose when unrolling, this retractable oil hose reel is made to last even in heavy duty environments. The Piusi open oil reels also benefit from adjustable arm brackets to allow for easy positioning and a hose stop for locking the hose at the desired length. Available with a choice of hose lengths or bare should the user wish to add their own specified hose, the Piusi retractable oil hose reel is suitable for a range of requirements.

Features of the Piusi Open Automatic Oil Hose Reel:

  • Automatic spring rewind oil hose reel
  • Sturdy steel structure
  • Rachet to prevent lock up when hose is extended
  • 4 way rollers to facilitate smooth unrolling
  • Hose stop for locking at chosen length

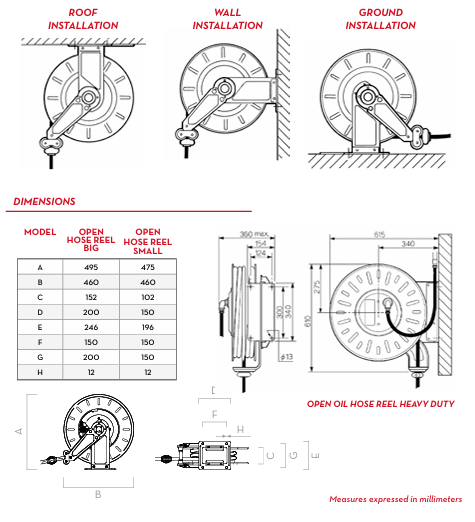

  • Adjustable arm brackets for easy positioning
  • Supplied bare or with different hose lengths
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
HN60151200Piusi ½“ Empty Open Oil Hose Reel SMALL

Max Length (m) - 15

Working Pressure (Bar )-60

Inlet- ½“ M BSP

Outlet- ½“ M BSP

£346.20 ex. VAT
HN60153800Piusi 3/8“ Empty Open Oil Hose Reel SMALL

Max Length (m) – 15

Working Pressure (Bar) - 60

Inlet- 3/8” F BSP

Outlet- 3/8 “ F BSP

£341.70 ex. VAT
HN60201200Piusi ½“ Empty Open Oil Hose Reel

Max Length (m)- 20

Working Pressure (Bar) - 60

Inlet- ½“ Male BSP

Outlet- ½“ Male BSP

£444.90 ex. VAT
HA60101200Piusi ½” Open Oil Hose Reel c/w 10m Hose SMALL

Hose length (m) - 10

Working Pressure (Bar) - 60

Pressure drop - 10 @ 30lpm

Inlet - ½“ Male BSP

Outlet - ½" Male BSP

£480.10 ex. VAT
HA60151200Piusi ½“ Open Oil Hose Reel c/w 15m Hose

Hose length (m) - 15

Working Pressure (Bar) - 60

Pressure drop - 16 @ 30lpm

Inlet- ½“ Male BSP

Outlet - ½” Male BSP

£530.00 ex. VAT
HA60201200Piusi ½“ Open Oil Hose Reel c/w 20m Hose

Hose length (m) - 20

Working Pressure (Bar) - 60

Pressure drop - 25 @ 30lpm

Inlet - ½“ Male BSP

Outlet - ½“ Male BSP

£679.50 ex. VAT
HA60153400Piusi 3/4" Open Oil Hose Reel c/w 15m Hose

Hose length (m) - 15

Working Pressure (Bar) - 60

Pressure drop - 4.5 @ 30lpm

Inlet - 1“ Male BSP

Outlet - 3/4“ Male BSP

£1,056.20 ex. VAT
HA60101000Piusi 1" Open Oil Hose Reel c/w 10m Hose

Hose length (m) - 10

Working Pressure (Bar) - 60

Pressure drop - 2 @ 30lpm

Inlet - 1“ Male BSP

Outlet - 1“ Male BSP

£1,074.05 ex. VAT

Product Accessories

CodeAccessoryPrice
F16279000

Rotating Support Plate Large

For all reels excl. SMALL & XL

£59.45 ex. VAT
F16298000

Fixed Support Plate Large

For all reels excl. SMALL & XL

£22.45 ex. VAT
F17317000

Rotating Support Plate Small

For reels marked SMALL

£52.70 ex. VAT
F17316000

Fixed Support Plate Small

For reels marked SMALL

£31.45 ex. VAT

Scroll left and right to view table

Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.

Apply for a credit account today to receive our exclusive benefit for trade customers only.
