Piusi E120 Electric Diesel Transfer Pump
100ltrs Per Min ( 230v / 110v / 400v)
Piusi E120 Diesel Transfer Pump
Image may vary depending on product model
Select image to zoom
From
£508.65
ex. VAT
Fluids
- D
- HVO/GTL
- AdBlue
- Air
- Antifreeze
- Any
- Chemical
- Diesel
- Grease
- Jet Fuel
- Kerosene
- Oil
- Petrol
- Rapsoil
- HVO/GTL
- Water
- Windscreen
- B2
The Official UK agent of Piusi pumps & fuel dispensing equipment
About the product
Italian manufactured Piusi E120 electric diesel transfer pumps are powerful, quality and compact units suitable for a number of applications, particularly those requiring high flow rates. As the quickest pump in the Piusi diesel fuel transfer pump range, this model is particularly popular for the refuelling of larger vehicles and machinery. However, provided that mains power is available, these versatile Piusi diesel pumps can be installed in any fixed diesel refuelling pump system such as a fuel storage tank.
The 1" BSP flanged E120 diesel transfer pump has a pump head, motor and an integrated bypass valve. This cast iron, self-priming rotary vane diesel dispensing pump can be continuously run on single-phase pumps thanks to the thermal overload protection, and can be quickly switched off by its on/off button when required.
Features of the Piusi E120 Electric Diesel Transfer Pump:
- Self-priming electric fuel transfer pumps
- Sintered steel rotor & acetal resin vanes
- Cast iron pump body with anti-corrosion paint
- Incorporated bypass valve & Viton lip seal
- Flow rate: 100ltr Per Min
- Weight: 16kg
- On/off switch
- Continuous running
- Thermal motor overload protection on single-phase pumps
- 1” F BSP inlet/outlet ports
- Protection grade: IP55
- Available in 230v/110v/400v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Product Models and Features
| Code | Model | Description | Price | |
|---|---|---|---|---|
| F00326110 | Piusi E120 Diesel Transfer Pump 240v/50Hz (F00326110) | Max Flow (lpm) - 100 240v 50Hz Ports - 1" F BSP Flanged Weight: 16kg | £508.65 ex. VAT | |
| 32700A | Piusi E120 Diesel Transfer Pump 110v/50Hz/60Hz (F0032700A) | Max Flow (lpm) - 100 110v 50Hz/60Hz Ports - 1" F BSP Flanged Weight: 16kg | £719.60 ex. VAT | |
| 312000 | Piusi E120 Diesel Transfer Pump 400v/50Hz (F00312000) | Max Flow (lpm) - 100 400v 50Hz Ports - 1" F BSP Flanged Weight: 16kg | £549.40 ex. VAT |
Product Accessories
| Code | Accessory | Price | |
|---|---|---|---|
| FRM004 | Large Pump Carry Frame Kit Width - 295mm Length - 375mm Height - 300mm c/w Nuts & Bolts, Rubber Mounts & Cable Tie | £193.50 ex. VAT | |

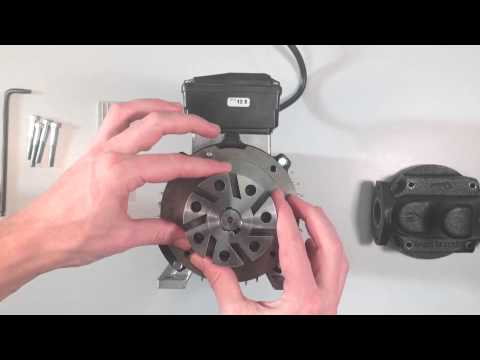

| 7002 | Vanes Kit (R0700200A) Watch the video guide for how to change the vanes in the video section above | £30.10 ex. VAT | |
| CTS1074 | Piusi E80/E120 Pump Service Kit Buy at the same time as the pump to save time and money in the future! Kit contains: Gasket O Ring 7 x Vanes | £35.55 ex. VAT |
Scroll left and right to view table
Where is this fuel dispensing pump typically used?
This fuel dispensing pump by the Italian manufactured Piusi, is preferable choice by most fuel tank manufacturers due to its reliability. This diesel transfer pump is usually installed on static fuel storage tanks during tank manufacturing or retrofitted on existing tanks. Typically, the fuel transfer pump is used in non-resale refuelling environment as it is not weights and measures approved. The fuel dispensing pump is an ideal solution for the refuelling of fleets of vehicles, agricultural machinery as well as plant equipment.
I need a nozzle and flow meter, which is suitable for use with this diesel fuel transfer pump?
When picking a suitable nozzle and flow meter to go with your pump, you need to make sure they are compatible with the fluid you’re pumping and that it can cope with the flow rate your pump will be working at.
The E120 is a diesel transfer pump with a flow rate of 100lpm.
| Suitable Nozzles | Suitable Flow Meters |
|---|---|
| Piusi Self 2000 | K33 |
| Piusi Self 3000 | K44 |
| Piusi Auto 120 | K24 |
| Husky 1GS | K600/3 |
| ZVA 25 | K600 B/3 |
Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.
Apply for a credit account today to receive our exclusive benefit for trade customers only.
