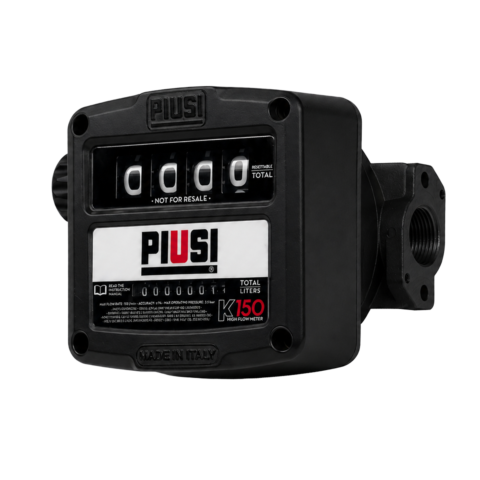

Piusi K150 ATEX Fuel Flow Meter

The Piusi K150 ATEX approved mechanical fuel flow meter uses a nutating disk to measure the quantity of diesel, petrol, kerosene or jet fuel being dispensed. Suitable for flammable environments thanks to its ATEX certification, this diesel flow meter has been designed by quality Italian manufacturer Piusi for high flow refuelling applications. The K150 ATEX flow meter benefits from up to 33% less pressure drop compared to alternative models, maintaining as much of the pump’s flow rate as possible. Suitable for refilling the tanks of larger vehicles and machinery, the K150 has a four digit resettable and 8 digit non-resettable totalisers enabling you to measure up to 9999.9 litres.

Please note: If being used with HVO, the meter should be re-calibrated based on it's SG of 0.78 (diesel is 0.84).

• Mechanical fuel flow meter
• Flow rate: 25-150ltr Per Min
• Can be rotated to allow flow from 4 directions
• 1” F x F BSP Inlet/Outlet
• Accuracy +/-1% after calibration
• Working temperature -20°c/+60°c
• Polybutylene nutating disk system
• 4 digit resettable and 8 digit non-resettable totaliser
• ATEX certified to 2 G IIB T=85°C (T6)
• For diesel, petrol, kerosene, AVGAS, JET A1, Aspen 2 & 4
