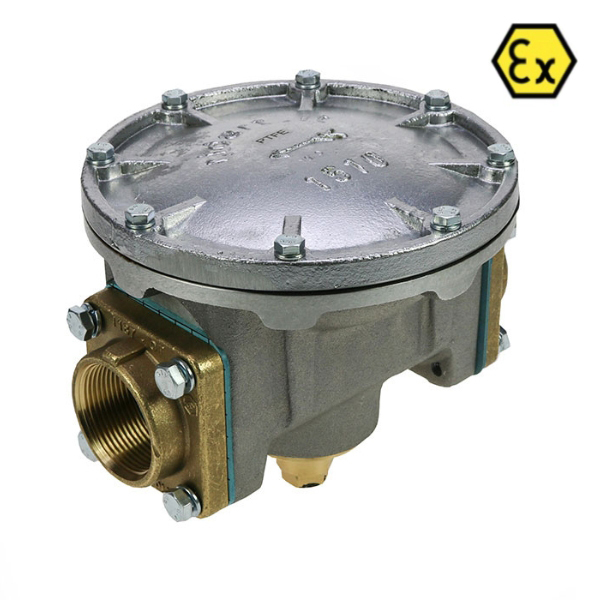

Pressure Regulating Anti Syphon Valve for ATEX and High Flow Applications
1 1/2" F Flanged
Image may vary depending on product model
Select image to zoom
Price
£677.65
ex. VAT
Fluids
- D
- P
- K
- B2
- HVO/GTL
- AdBlue
- Air
- Antifreeze
- Any
- Chemical
- Diesel
- Grease
- Jet Fuel
- Kerosene
- Oil
- Petrol
- Rapsoil
- HVO/GTL
- Water
- Windscreen
- B2
About the product
Pressure Regulating Anti Syphon Valve for ATEX and High Flow Applications is designed to protect against syphoning or accidental emptying of an above ground storage tank. This anti syphon valve prevents head loss and regulates the flow with no hammering effect.
The pressure regulating anti syphon valve can be fitted horizontally near the fuel dispenser, with a 6m maximum tank height from ground level. The anti syphon fuel valve comes with a stainless steel inlet strainer and is ATEX certified.
Features of the Pressure Regulating Anti Syphon Valve for ATEX and High Flow Applications:
- Triangular 1 1/2” flanged connection
- ATEX certified: || 2 G
- Max flow rate 84 - 200lpm
- Must be fitted horizontally
- Maximum liquid column of 6m
- Fitted with a wire mesh filter
Product Models and Features
| Code | Model | Description | Price | |
|---|---|---|---|---|
| ND5000 | Pressure Regulating Anti Syphon Valve for ATEX and High Flow Applications | Inlet/Outlet - 1 1/2" F BSP Max Flow - 84 - 200lpm Diesel, Petrol, HVO ATEX certified II 2 G | £677.65 ex. VAT |
If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.
Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
